Telethings
Telethings LoRa Node LoNo1
Opis

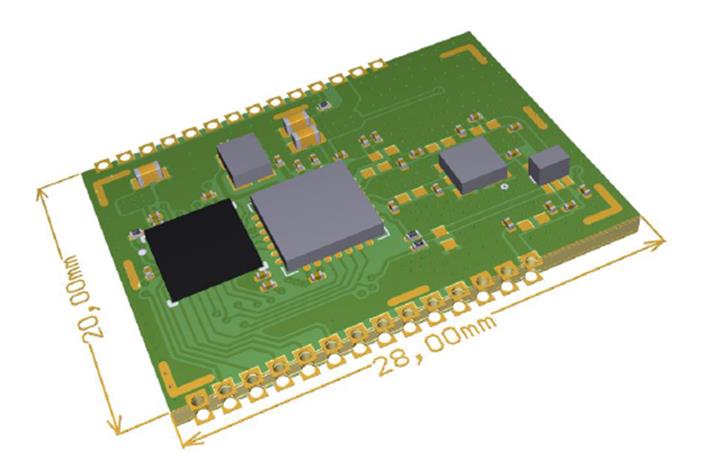

Telethings Lora node LoNo1 is a device based on a low power STM32L071 microcontroller, and a sx1272 module. It has small dimensions and can respond to users' demands with very low power consumption (the consumption of a device when working in sleep mode is below 10 uA). The main function of the device is sending / receiving data using the LoRa wireless network. In rural areas, the module realizes communication with the gateway at distances up to 15 kilometers, while this range is up to 2 kilometers in urban areas.
If it is a module that works as an AT Slave device, it should be noted that the device as such already has firmware ready for operation, and it is necessary to achieve communication with the module using UART. A master device is needed in this case, which will use the nodes as a supplement with the main goal of sending some information to the server.
If it is a programmable module embedded in a daughter board, it should be noted that the user himself determines the functionality of the device. For communication with sensors
If it is a module that works as an AT Slave device, it should be noted that the device as such already has firmware ready for operation, and it is necessary to achieve communication with the module using UART. A master device is needed in this case, which will use the nodes as a supplement with the main goal of sending some information to the server.
If it is a programmable module embedded in a daughter board, it should be noted that the user himself determines the functionality of the device. For communication with sensors
